Automated painting in the automotive industry

Innovative Car Painting with a Seventh Axis: Precision and Efficiency

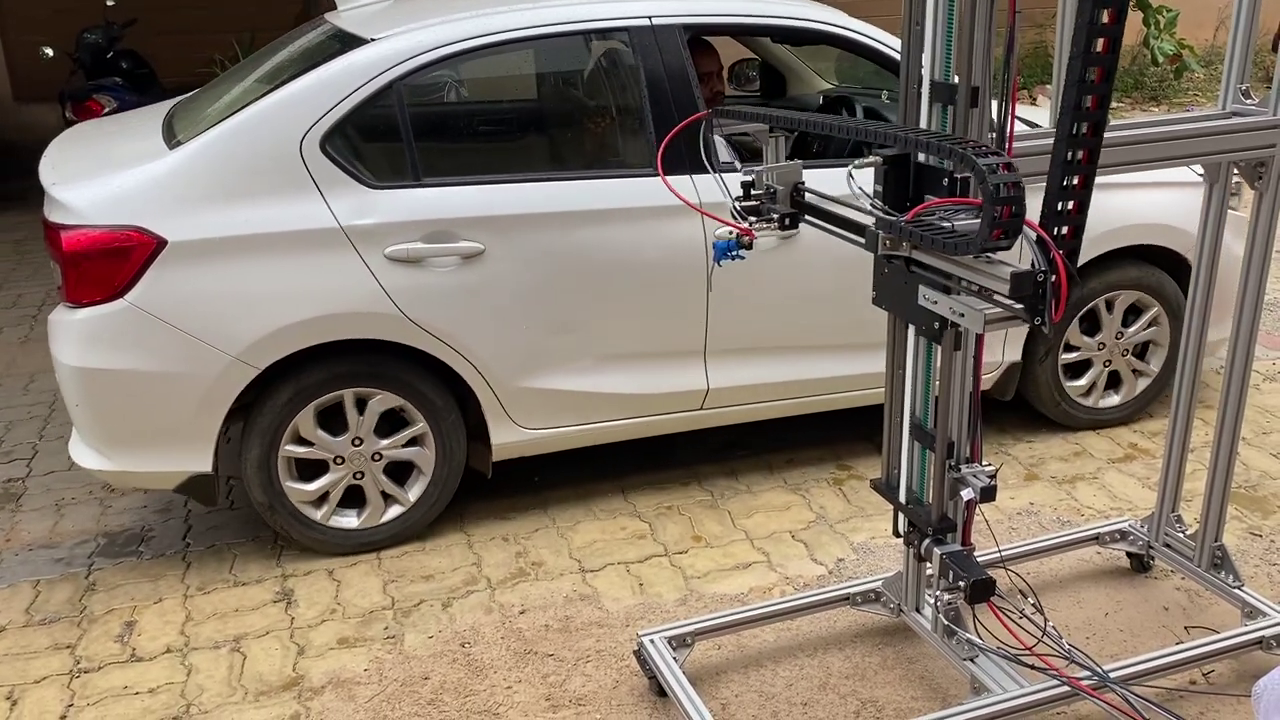

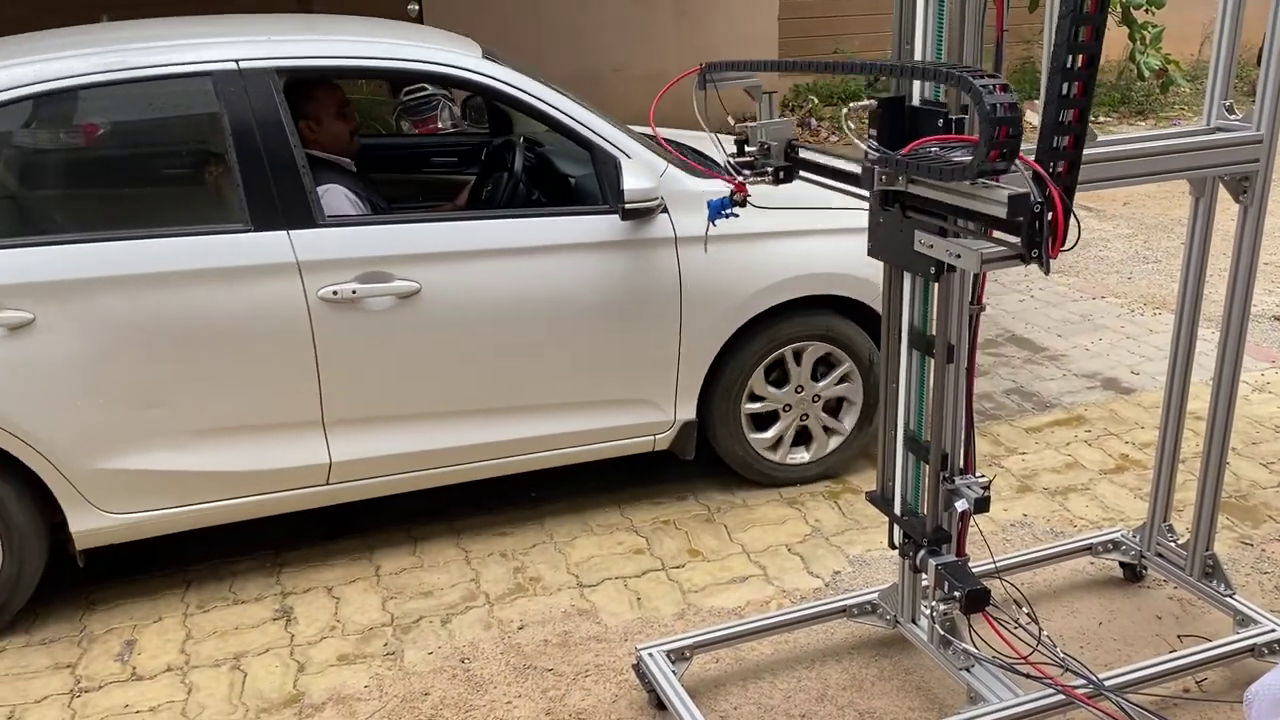

The precise painting of vehicles is a demanding task requiring advanced automation solutions. In this application, a seventh axis from igus® and an additional linear guide are integrated to simulate the automated painting of a car. The seventh axis enables extended movement capabilities, ensuring even coating across complex surfaces, while the linear guide allows controlled linear progression for maintaining accuracy and stability throughout the process. This advanced setup highlights a significant leap in efficiency and precision in the automotive industry.

What is the Application?

The system is used to simulate automated car painting in the automotive sector, combining multi-axis freedom with linear stability for consistent, quality coatings.

What are the Advantages of the Solution?

• Enhanced Precision: Ensures even and accurate paint application across all surfaces.

• Efficient Workflow: Automation minimizes errors and improves consistency.

• Improved Stability: Linear guides guarantee controlled motion and uniform results.

What are the Advantages of the Robot?

The robotic system with igus® components provides:

• Flexibility: The seventh axis expands the robot’s motion range.

• Durability: High-quality materials ensure reliable performance over extended use.

• Scalability: Adaptable for different automotive painting applications.

Advancing Automotive Automation with igus® Technology

This automated painting solution demonstrates how innovative robotics, combined with extended axis movements and guidance systems, can optimize workflows in the automotive industry. By achieving high precision and stability, manufacturers benefit from improved efficiency and quality while setting new standards in automation technology.
