DOBOT CR6AL | 6DOF | 1800mm | 6kg

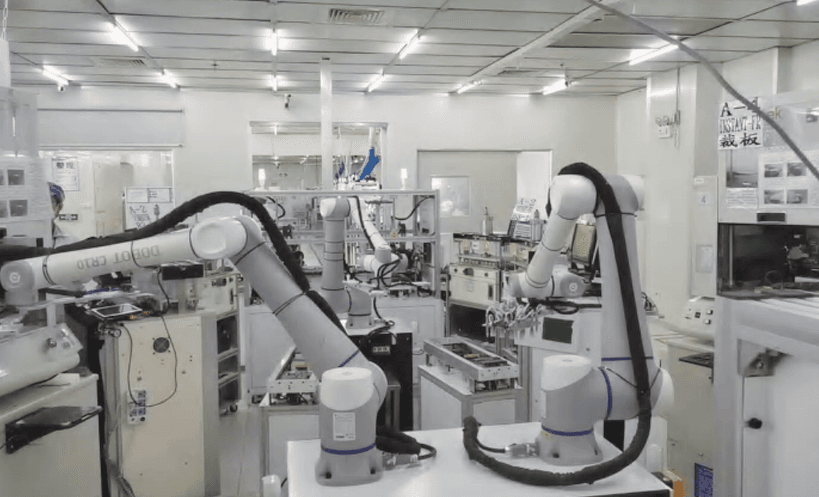

The DOBOT CR6AL is a collaborative 6-axis robot designed for automation tasks requiring long reach and moderate payload capacity. With a 6 kg payload and 1,800 mm reach, it can efficiently serve multiple workstations, machines, or conveyor lines from a single position. Typical applications include machine tending, pick-and-place, material handling, packaging, quality inspection, and light assembly. The CR6AL is ideal for companies looking to automate large workspaces while retaining the benefits of collaborative robotics. Its key strengths are extended reach, user-friendly operation, and safe human-robot collaboration. However, it is not intended for heavy palletizing, high-force processes, or applications requiring higher payloads.

The DOBOT CR6AL is commissioned using DobotStudio Pro, which supports robot configuration, programming, and diagnostics. The software combines intuitive graphical programming with advanced scripting options. Through TCP/IP communication and the official Python API, the robot can be integrated into custom automation solutions. Connectivity options include digital and analog I/O as well as Modbus, enabling seamless PLC integration. Hand-guiding allows users to teach robot positions directly without extensive programming. Experienced integrators can typically complete initial setup within a few hours, while more advanced applications involving vision systems, safety concepts, or additional peripherals may require much more integration effort.

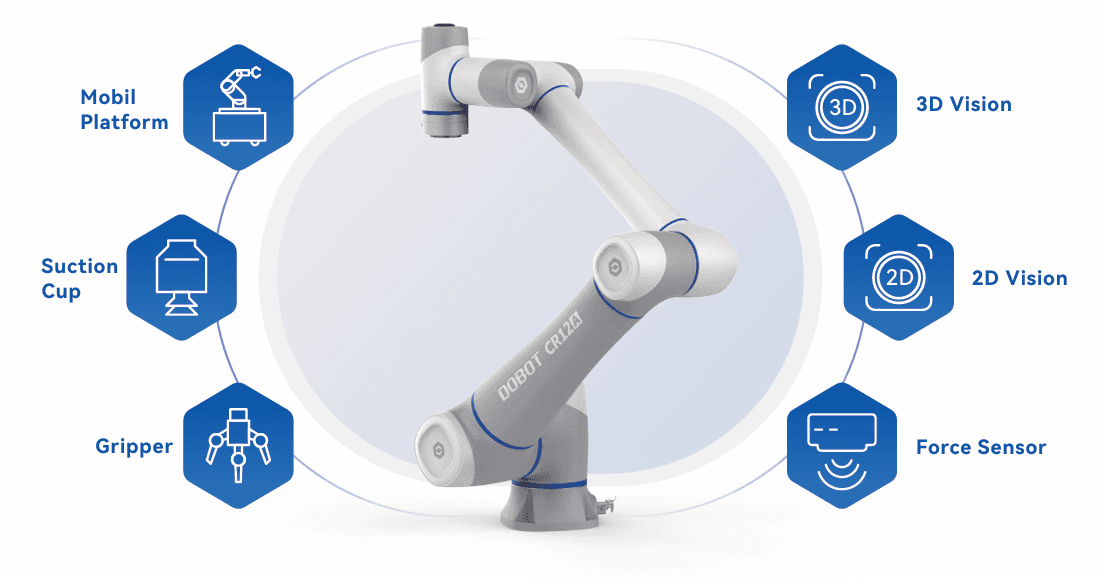

The DOBOT CR6AL supports a wide range of end effectors, making it adaptable to diverse automation tasks. Electric grippers are commonly used for assembly and handling applications, while pneumatic grippers are preferred for high-speed cycles and demanding industrial environments. Vacuum grippers are ideal for cartons, plastic parts, and flat workpieces. Thanks to standardized flange interfaces, existing gripping systems can often be reused. The robot can also be integrated with vision systems, conveyor tracking solutions, force-torque sensors, and other sensing technologies. Numerous plug-and-play solutions from the DOBOT ecosystem and RBTX enable easy expansion and adaptation to evolving production requirements.

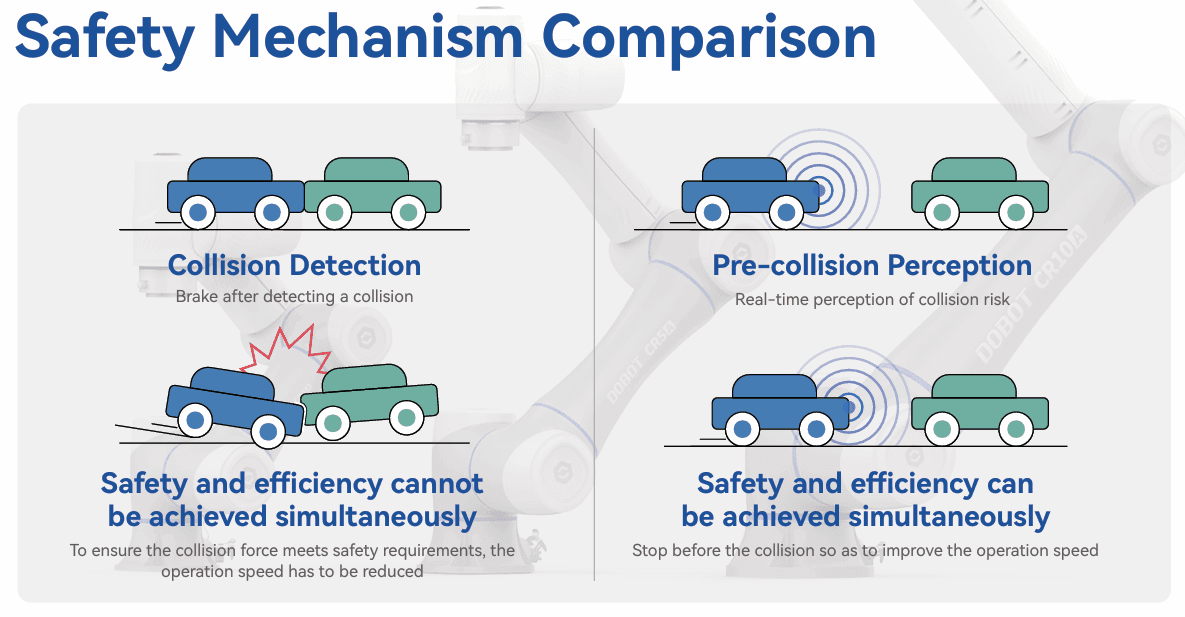

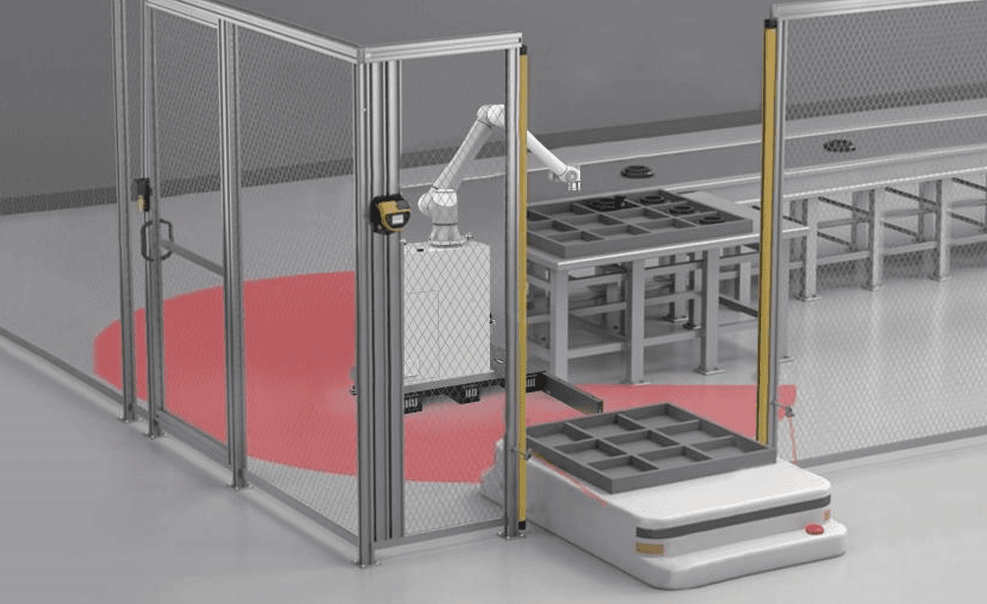

The DOBOT CR6AL is a collaborative robot designed for safe human-robot interaction. It features integrated safety functions for monitoring speed, position, and collisions. Depending on the application’s risk assessment, operation without a traditional safety fence may be possible. However, each application must be evaluated individually, as tools, workpieces, and process conditions influence the required safety concept. Additional safeguards are necessary for applications involving sharp tools, high speeds, or elevated hazards. Integrated emergency stop functions and continuous safety monitoring support secure operation. The CR6AL is particularly well suited for pick-and-place, machine tending, and material handling tasks in shared workspaces.

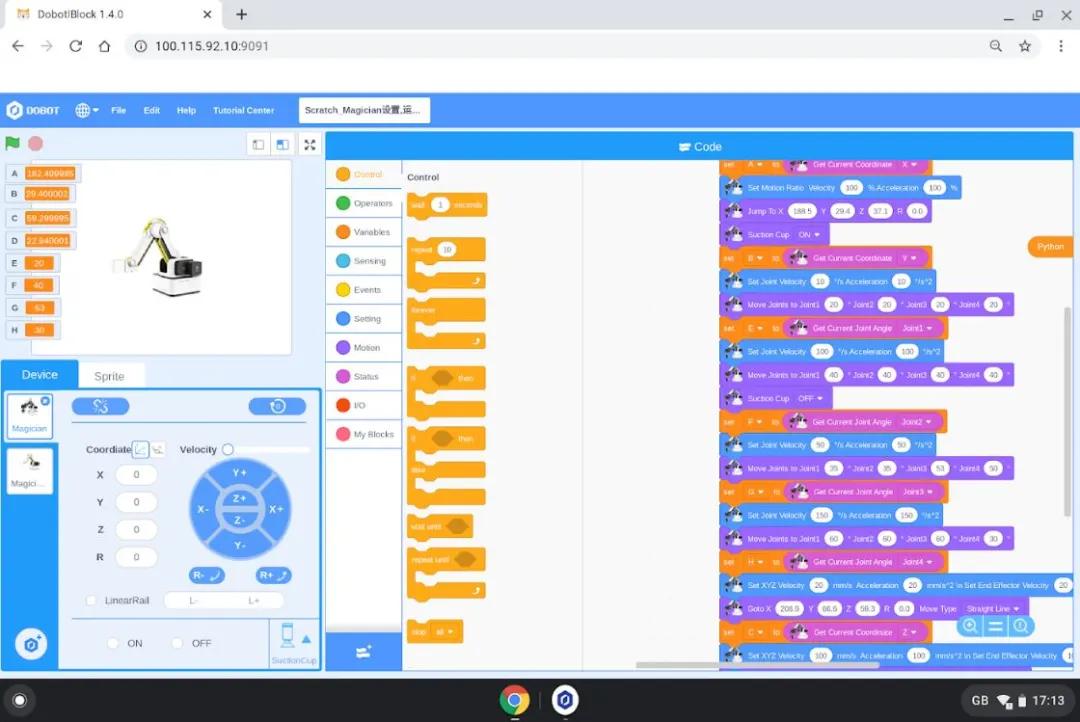

The DOBOT CR6AL is designed for easy programming, enabling even users with limited robotics experience to create automation applications quickly. Programming can be performed via the teach pendant, graphical interfaces, or direct hand-guiding of the robot arm. Positions can be taught manually or through drag-and-drop workflows. For advanced automation, the robot supports scripting and Python integration via TCP/IP. PLC connectivity is available through industrial communication interfaces and Modbus. Built-in templates and setup wizards simplify common handling tasks, allowing beginners to achieve first results after minimal training. Time to deployment mainly depends on the selected gripper, peripherals, and safety concept rather than robot programming itself.

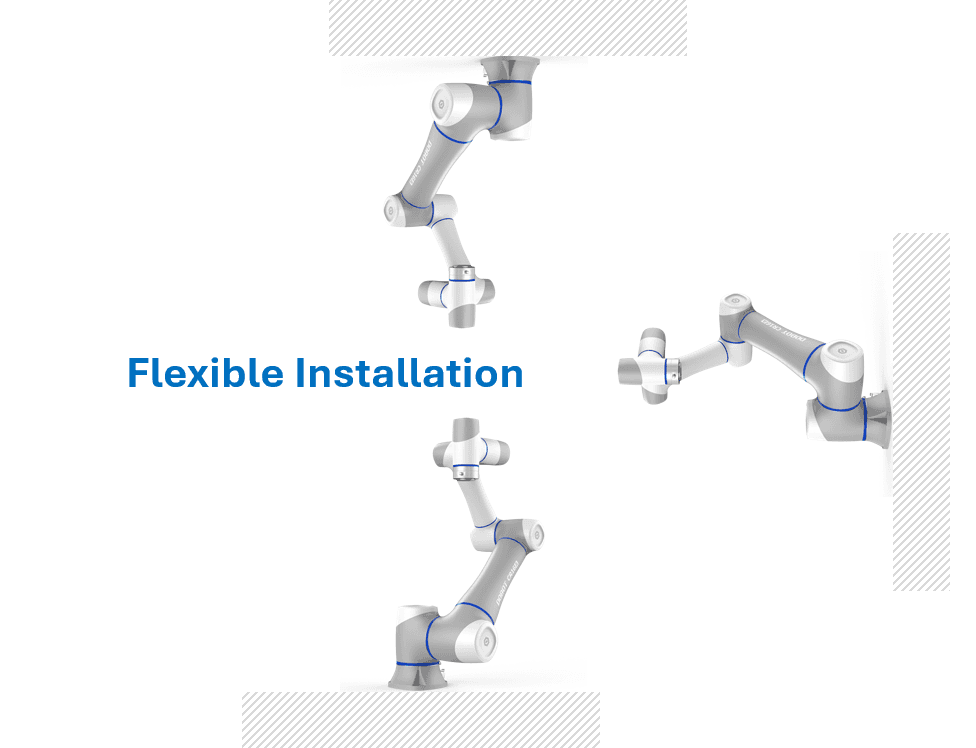

The DOBOT CR6AL offers flexible installation options for a wide range of production environments. It is commonly mounted on worktables, pedestals, robot stands, or machine frames. Depending on application requirements, wall-mounted and overhead installations are also possible when mechanical constraints are considered. Its 1,800 mm reach enables a single robot to serve multiple workstations from one central position, helping reduce system complexity and robot count. For optimal performance, a rigid, low-vibration mounting structure is recommended. Workspace planning should consider reach, tool length, payload, and required safety clearances. Typical applications include machine tending, conveyor tracking, multi-station handling, as well as automated inspection and packaging cells.

The DOBOT CR6AL is designed for industrial operation and requires only minimal maintenance. Recommended service measures include regular inspections of cabling, connectors, mounting points, and safety devices. Grippers, pneumatic systems, and vacuum components should be maintained according to the respective manufacturer guidelines. The robot arm itself contains few wear-prone parts, helping reduce operating costs and downtime. Integrated diagnostic and maintenance tools simplify troubleshooting and system monitoring. Spare parts and technical support are available through DOBOT’s global network and regional partners. Training programs for integrators and end users help ensure efficient commissioning, programming, and long-term maintenance. An optional extended warranty of up to 3 years is available.

The DOBOT CR6AL is an excellent choice for companies seeking a collaborative robot with an exceptionally long reach. Combining a 6 kg payload with a 1,800 mm reach, it is well suited for machine tending, material handling, packaging, and multi-station applications. Small and medium-sized businesses particularly benefit from its straightforward integration and user-friendly programming. Key competitors include Universal Robots, JAKA, Elite Robots, Fanuc CRX, and other models from the DOBOT CR series. The CR6AL’s greatest advantage is its outstanding reach within the cobot segment, while its limited payload remains the main constraint. For moving lightweight components across large work areas, it offers a highly efficient and cost-effective automation solution.
